How to prepare countertop cutouts for Zebra scanner scale installation

This article explains the specifications needed to cut countertops for in-counter Zebra scanner scale installations.

Introduction

When installing Zebra’s in-counter scanner scales, ensure that countertop cutouts are precisely measured and routed for a proper and secure fit. The specifications outlined below are based on Zebra’s official installation guidance and should be followed closely to support accurate scale performance and long-term durability.

Directions

  1. Click here to open the Scanner/Scale Integrator guide.
  2. Navigate to section 3 - 17 on page 116 of the guide.

  3. Work with a cabinet maker or skilled carpenter to create the cutout using a router. The Zebra Scanner/Scale Integrator Guide should be used as the primary reference for dimensions and installation best practices.

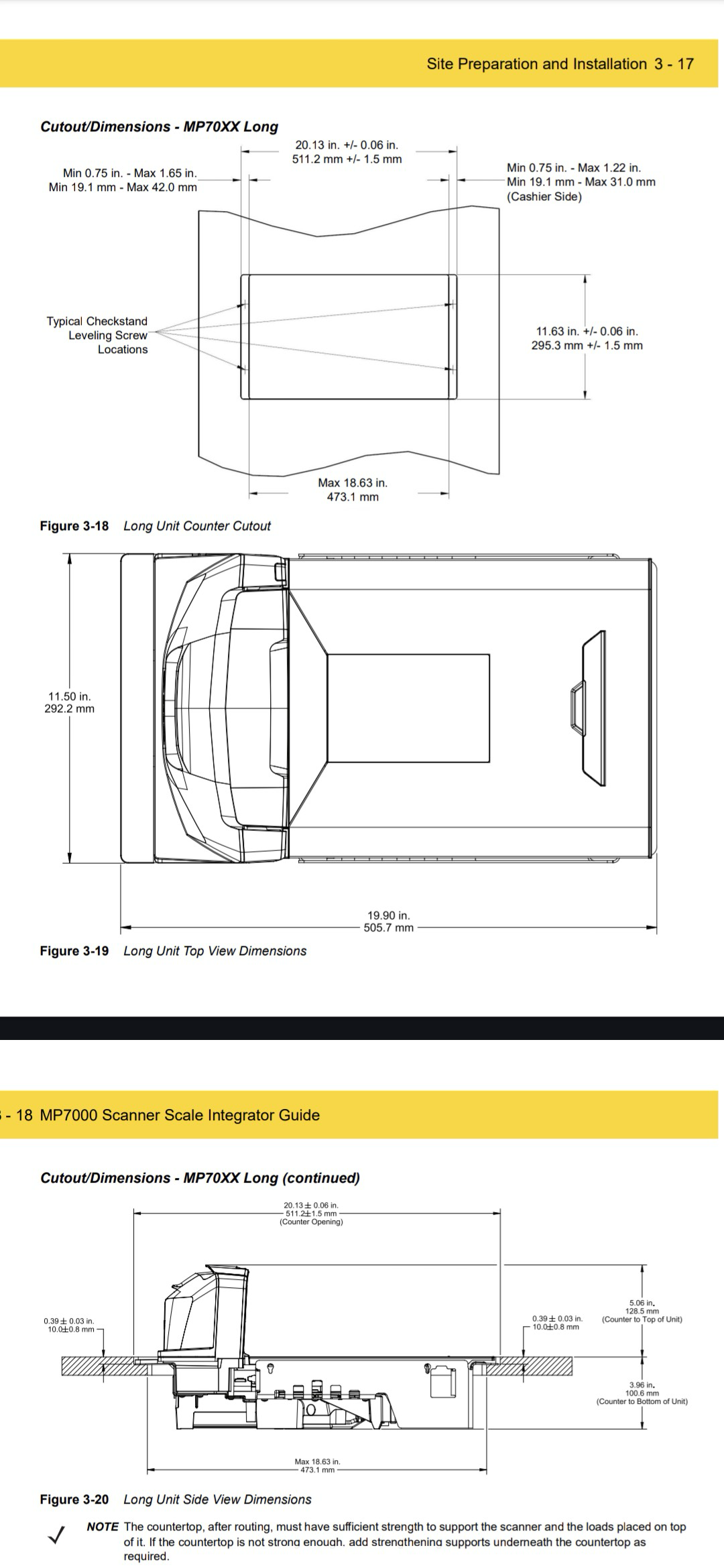

Reference Diagrams
